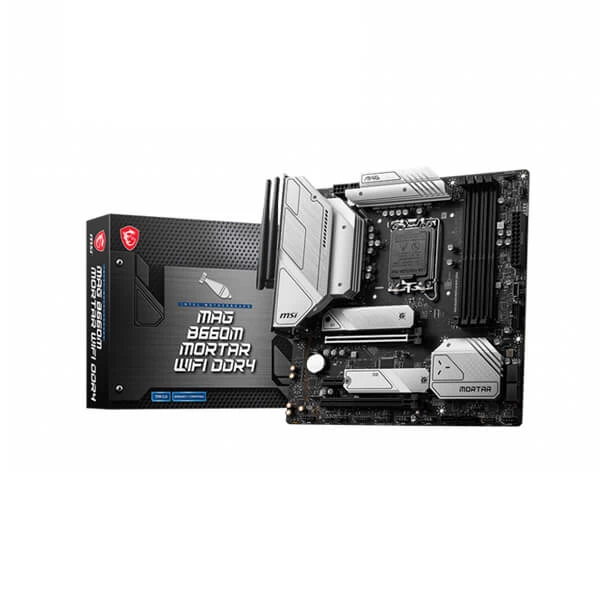

MSI MAG B660M Mortar WIFI DDR4
MSI MAG B660M Mortar WIFI DDR4 ₹18,150.00
Back to products

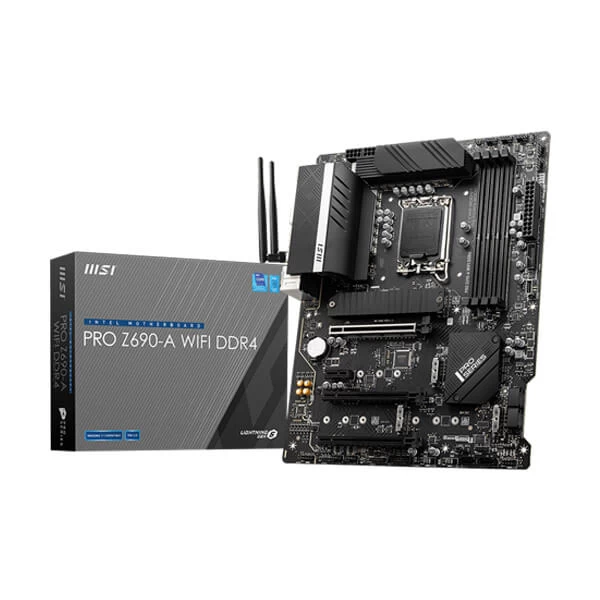

MSI PRO Z690-A WIFI DDR4
MSI PRO Z690-A WIFI DDR4 ₹20,990.00
Asus TUF Gaming B660M-PLUS WIFI D4
Asus TUF Gaming B660M-PLUS WIFI D4
Asus TUF Gaming B660M-PLUS WIFI D4
Asus TUF Gaming B660M-PLUS WIFI D4
Click to enlarge
Asus TUF Gaming B660M-PLUS WIFI D4
Asus TUF Gaming B660M-PLUS WIFI D4
Asus TUF Gaming B660M-PLUS WIFI D4
Asus TUF Gaming B660M-PLUS WIFI D4

Asus TUF Gaming B660M-PLUS WIFI D4

₹18,890.00

0 days 00 hr 00 min 00 sc
Add to wishlist
Compare
0 People watching this product now!

Free Shipping

Shipping to all pin codes of india

Secured Shopping

Shop with confidence

Branded Products

Assured Warranty

Easy Replacement

Withing few days

No Hidden Charges

No any extra charges

Easy Payment Option

Pay by using your choice

[maxbutton id=”1″ url=”http://cpcb.jetlaptechnologies.com/intel/” text=”BUILD PC WITH THIS ITEM” ]

Intel® B660 (LGA 1700) mATX motherboard, 10 1 DrMOS Power stages , PCIe 5.0 support, DDR4 5333 (OC), Dual PCIe 4.0 M.2 Slots with Flexible Heatsink, Intel® Wi-Fi 6, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2×2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Aura Sync, Two-way AI Noise Cancelation
  • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
  • Enhanced power solution: 10 1 DrMOS power stages, six-layer PCB, 8 4 ProCool sockets, military-grade TUF components and Digi VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3 , Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2
  • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
  • Made for online gaming: Intel® WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Durable. Stable. Reliable.
ASUS TUF GAMING B660M-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

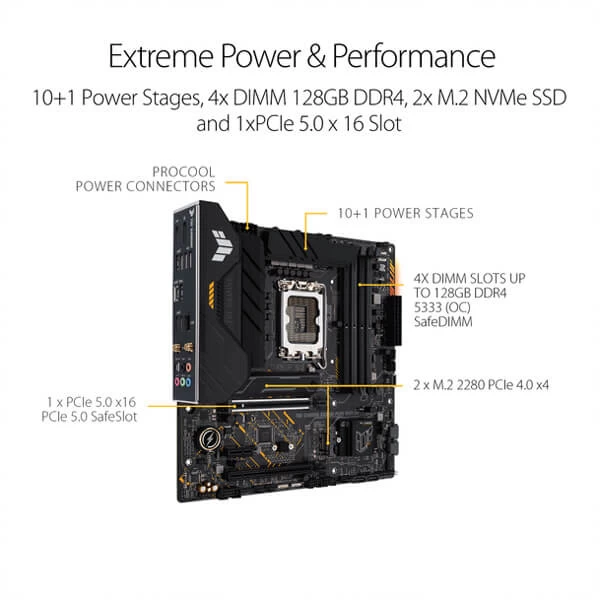

Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core™ processors, plus support for faster memory and storage, TUF GAMING B660M series motherboards are the perfect foundation for your next high-core-count battle rig.
Power Design

Driver and
MOSFETMultilayer
PCBPower
ConnectorSystem
StabilityController

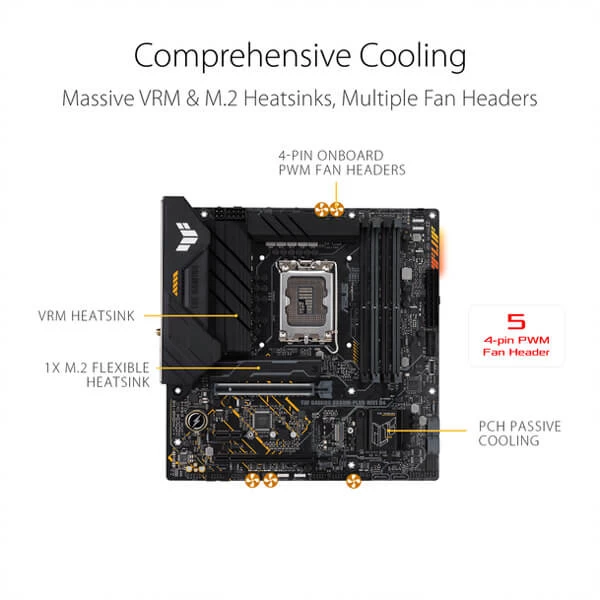

COOLING

Cooler by
DesignComprehensive
Fan Controls

MEMORY & STORAGE

PCIe 5.0Front USB
support

CONNECTIVITY

DRAM
Overclocking
PerformancePCIe 4.0
M.2USB 3.2
Gen 2×2
Type-C®Thunderbolt™ 4
support

Easy PC DIY
TUF GAMING motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 2 and hardware information and offers full full control of Two-Way AI Noise Cancellation, RGB lighting and peripheral settings. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity.
Build with Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
TUF PROTECTION

SafeSlot &
SafeDIMMESD
GuardsTUF
LANGuardDRAM
overvoltage
protectionStainless-steel
back I/O panel

EASY CONFIGURATION

M.2 Q-LatchRemovable
Captive
ScrewsQ-LEDArmoury
Crate

Immersive Gaming
TUF GAMING B660M series motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
Networking

Intel®
WiFi 62.5 Gb
Ethernet

Two-Way AI Noise Cancelation

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.

*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.

Gaming Audio

Realtek 7.1
Surround
SoundBetter Audio
Effects

Outshine the Competition
A well-tuned system deserves a matching aesthetic. TUF Gaming B660M series features edge lighting to enhance its rugged look, and now the PCH heatsink gets RGB lighting to take the style even further. ASUS Aura offers full RGB control with a variety of functional presets for built-in LEDs as well as third-party strips you can connect to onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 RGB Header
The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing addressable RGB gear.
  • CPU
    Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® B660 Chipset
  • Memory
    4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
  • Graphics
    1 x DisplayPort**
    1 x HDMI® port***
    *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    ***Supports 4K@60Hz as specified in HDMI 2.1.
    **** VGA resolution support depends on processors’ resolution.
  • Expansion Slots
    Intel® 12th Gen Processors
    1 x PCIe 5.0 x16 slot
    Intel® B660 Chipset*
    1 x PCIe 3.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x1 slot
    * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
  • Storage

    Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports,

    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280
    – Intel® 12th Gen processors support PCIe 4.0 x4 mode.
    Intel® B660 Chipset**
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
  • Ethernet

    TUF LANGuard

    1 x Realtek 2.5Gb Ethernet
     TUF LANGuard
  • Wireless & Bluetooth
    Intel® Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.2*
    *Bluetooth v5.2 function will be ready in Windows 11 or later.
  • USB

    Rear USB:Total 8 ports,

    Rear USB (Total 8 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    4 x USB 3.2 Gen 2 ports (4 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)

    ,

    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    – Audio Features
    – Audio Shielding
    – Power pre-regulator reduces power input noise to ensure consistent performance
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Dedicated audio PCB layers
  • Back Panel I/O Ports
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    4 x USB 3.2 Gen 2 ports (4 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
  • Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin 12V Power connector
    1 x 4-pin 12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x AURA RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ header
  • Special Features
    ASUS TUF PROTECTION
    – DIGI VRM (- Digital power design with DrMOS)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – Flexible M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – CPU Socket lever protector
    – ProCool
    – Pre-mounted I/O shield
    – SafeDIMM
    AURA Sync
    – AURA RGB header
    – Addressable Gen 2 headers
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    – AURA Creator
    – AURA Sync
    – Fan Xpert 2
    – Two-Way AI Noise Cancelation
    AI Suite 3
    – Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI VRM
    TUF GAMING CPU-Z
    DTS Audio Processing
    MyASUS
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE

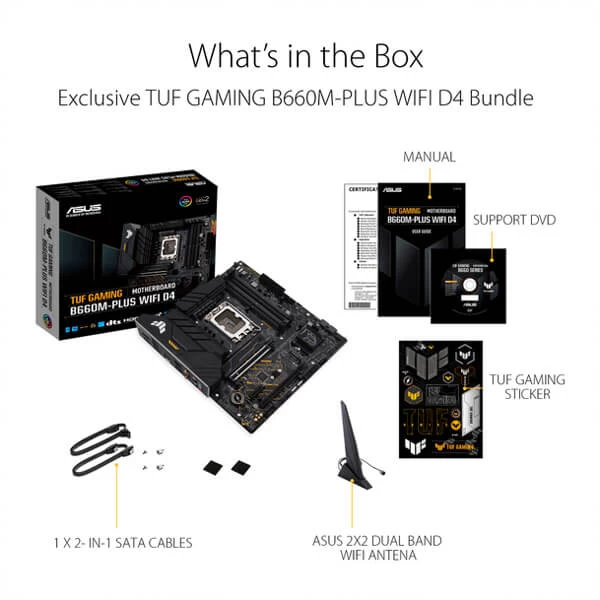

  • Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x M.2 Rubber Package
    1 x M.2 SSD screw package
    1 x TUF Gaming sticker
    Installation Media
    1 x Support DVD
    Documentation
    1 x TUF Certification card
    1 x User guide
  • gallery image
  • gallery image
  • gallery image
  • gallery image
  • gallery image
  • gallery image
  • gallery image
  • gallery image



Powered by Flixmedia

Features:

Intel® B660 (LGA 1700) mATX motherboard, 10 1 DrMOS Power stages , PCIe 5.0 support, DDR4 5333 (OC), Dual PCIe 4.0 M.2 Slots with Flexible Heatsink, Intel® Wi-Fi 6, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2×2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Aura Sync, Two-way AI Noise Cancelation

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
  • Enhanced power solution: 10 1 DrMOS power stages, six-layer PCB, 8 4 ProCool sockets, military-grade TUF components and Digi VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3 , Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2
  • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
  • Made for online gaming: Intel® WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Specifications:

CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset Intel® B660 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II
Graphics 1 x DisplayPort**

1 x HDMI® port***

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors’ resolution.
Expansion Slots Intel® 12th Gen Processors

1 x PCIe 5.0 x16 slot

Intel® B660 Chipset*

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x1 slot

* Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

– Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet TUF LANGuard

1 x Realtek 2.5Gb Ethernet

TUF LANGuard
Wireless & Bluetooth Intel® Wi-Fi 6

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2*

*Bluetooth v5.2 function will be ready in Windows 11 or later.
USB Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 2 ports (4 x Type-A)

1 x USB 3.2 Gen 1 port (1 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

– Audio Features

– Audio Shielding

– Power pre-regulator reduces power input noise to ensure consistent performance

– Rear optical S/PDIF out port

– Premium audio capacitors

– Dedicated audio PCB layers
Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 2 ports (4 x Type-A)

1 x USB 3.2 Gen 1 port (1 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port
Internal I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin 12V Power connector

1 x 4-pin 12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header
Special Features ASUS TUF PROTECTION

– DIGI VRM (- Digital power design with DrMOS)

– Enhanced DRAM Overcurrent Protection

– ESD Guards

– TUF LANGuard

– Overvoltage Protection

– SafeSlot

– Stainless-Steel Back I/O

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– Flexible M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– CPU Socket lever protector

– ProCool

– Pre-mounted I/O shield

– SafeDIMM

AURA Sync

– AURA RGB header

– Addressable Gen 2 headers
Software Features ASUS Exclusive Software

Armoury Crate

– AURA Creator

– AURA Sync

– Fan Xpert 2

– Two-Way AI Noise Cancelation

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

DIGI VRM

TUF GAMING CPU-Z

DTS Audio Processing

MyASUS

WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x M.2 Rubber Package

1 x M.2 SSD screw package

1 x TUF Gaming sticker

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User guide
Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor microATX

24.4cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
